| Characteristics |
* High Power Endurance
* High Power Endurance

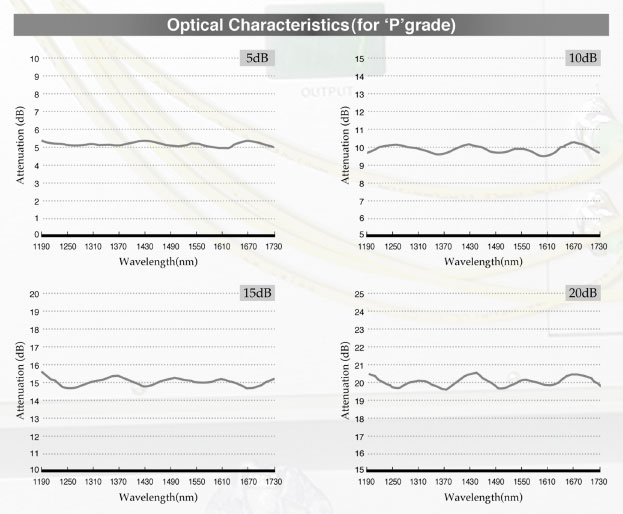

* Low Wavelength Dependent Loss |
| Applications |
* Optical Fiber Communications
* LAN, CATV Systems
* Optical Network Equipments
* Optical Test Equipments |
 |
| |
| |
| Specifications |
| Parameters |
Type |
Spec. |
| Attenuation Value (dB) |
- |
1,2,3,4,5,10,15,20 |
| Operating Wavelength (nm) |
Single Mode |
1310, 1550, 1310 & 1550 |
Multi-made |
850, 1310, 1550 etc. |
| Back Reflection (dB) |
SPC |
Min 40 |
UPC |
Min 50 |
APC |
Min 60 |
| Attenuation Accuracy (dB) |
Grade |
S |
A |
B |
1 ~ 9 |
‐0.5 |
‐1.0 |
‐1.5 |
10 ~ 20 |
‐1.0 |
‐1.5 |
‐2.0 |
| Maximum Optical Input Power (mW) |
1 hour. Passed |
300 |
| Polarization Dependent Loss (dB) |
|
Max. 0.2 |
| Operating Temperature Range(”) |
|
-40 ~ 75 |
| Storage Temperature Ragne(”) |
|
-40 ~ 85 |
|
 |
| |
|
|
|
